PIXLIP GO FLEX CONNECTOR - Assembly instructions
Quick overview
The PIXLIP GO Flex Connector connects two Lightbox elements flexibly and without tools. It allows variable angles, saves power outlets because multiple elements require only one power supply, and offers maximum design freedom for trade show stands, events, or shop displays.
Scope of delivery and preparation
What you need:
- 2 PIXLIP GO fixed elements
- 1 or 2 PIXLIP GO Flex Connectors (depending on the connection)
- Optional: Assistant for alignment with large elements
Step-by-step assembly
-
Positioning
Place the two elements roughly next to each other at the desired angle and bring them to within about 5 cm of each other.
-
Correct orientation of the connector
The closed side of the Flex Connector faces the front if you want the printed surfaces to be on the inside corner later.
-
Place the first element on top
Lift the first element slightly and place it onto the Flex Connector. Make sure that the connector's small spring snaps into the profile's groove.
-
Pull the elements together
Pull the two elements together until they sit flush. Repeat the process on the opposite side if you are using two connectors.
-
Insert the upper connector
For the upper connector, simply slide the Flex Connector into the designated recess in the element. This is especially quick and clean.
-

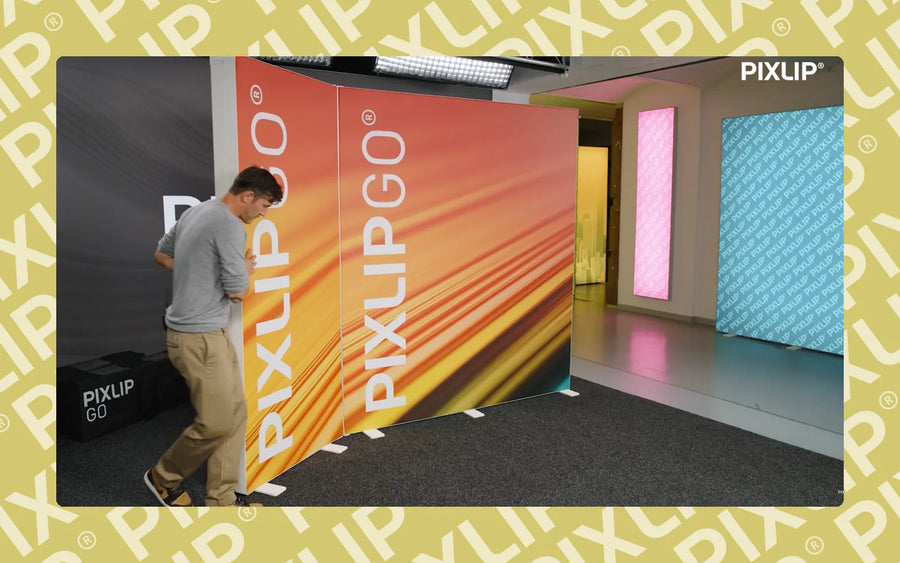

Adjust the angle
Tilt or angle the connected elements as needed. The Flex Connector allows stepless adjustment - so you can achieve, for example, a perfect right angle.
